Nearly 70% of residential plumbing failures are due to bad connections. This emphasizes the importance of connection quality, alongside the tubing choice.
Best Website To Purchase 3/4 Compression Fitting
For pros and DIYers, a trustworthy 3/4″ copper fitting is indispensable. Such fittings guarantee secure, leak-free connections when used with the appropriate copper pipes.
Copper pipes M, L, K are common, meeting ASTM/NSF codes for different uses. A 3/4 inch union, when installed correctly, offers extended life and corrosion resistance. It also helps meet code with regulations for both new installations and repairs.
The website Installation Parts Supply.com sells top-grade 3/4″ fitting parts and matching tubing. This grants builders and residents access to top-tier components that fit industry norms for function and dependability.
Selecting High-Quality 3/4 Copper Compression Fittings For HVAC And Plumbing
High-quality 3/4″ fittings deliver secure seals without the need for open flames. They are preferred by professionals for their ability to facilitate fast hookups, repairs, and retrofit work. These fittings offer contractors a durable, easy-to-service joint that withstands the demands of the field.
Durability and corrosion resistance of copper fittings
Copper’s inherent ability to oxidation and its ability to withstand extreme temps render it suitable for various applications. It works well for drinking water, HVAC refrigerant lines, solar systems, and some fuel lines. Premium fittings, especially, resist elements, keeping seals tight over extended service lives.
Works with M, L, and K copper tubes
For a leak-free joint, compression fittings must fit the tubing size and thickness. M, L, K types cater to most needs: Grade L is good for home and business water lines, Grade M for lighter residential runs, and Type K for underground or heavy-duty applications. Make sure to check the tube size when purchasing a 3/4 fitting part to ensure a proper fit.
Applications in residential and commercial systems
Such fittings are flexible and good for a wide range of applications. People often use them on potable water lines, branches, and supply lines. In HVAC work, they guarantee safety by matching refrigerant-grade copper and matching parts. For non-soldered joins in field repairs, a 3/4″ union or a 3/4″ brass coupler provides easy entry for upkeep.
| Attribute | Advantage | Common Application |
|---|---|---|
| Anti-corrosion | Lasts long in wet areas | Water, solar, HVAC |
| Fits M, L, K types | Reliable seals when matched to tube OD | Home and business plumbing |
| Simple install | Quick fixes, less waiting | Service, retrofits, emergencies |
| Available in brass and copper | Options for pressure and application needs | Brass for general, Copper for rust protection |

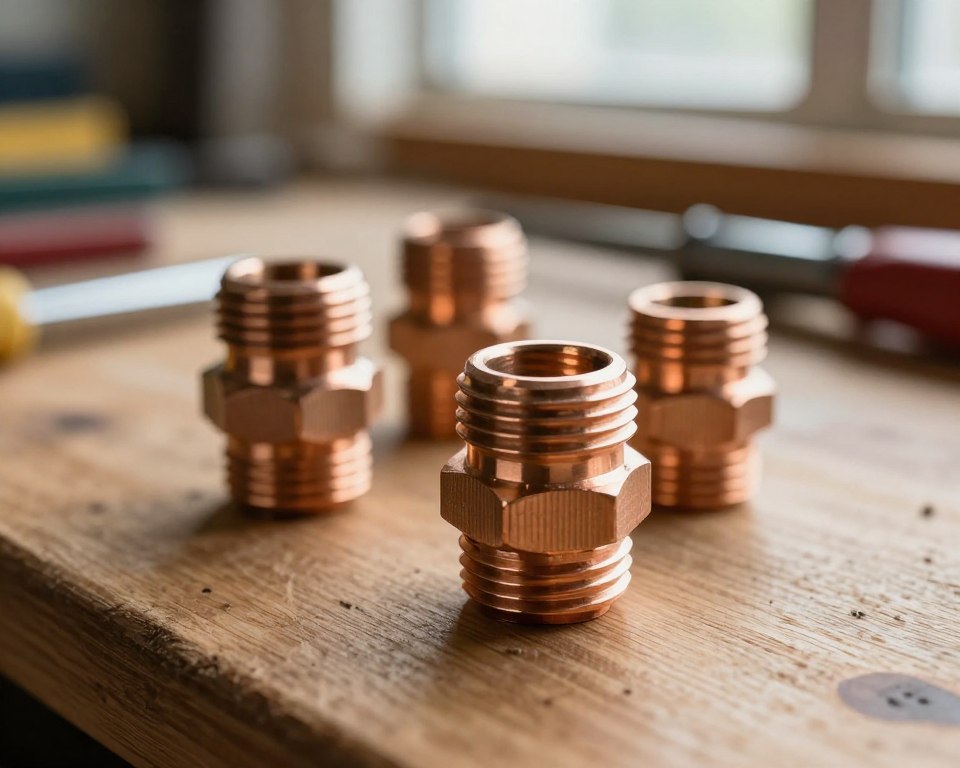

3/4 Copper Compression Fitting: Features, Parts, And Materials
Grasping the elements and construction materials is crucial to selecting the right 3/4 copper compression fitting. The fittings form a secure seal no solder required. They are suitable for a wide range of pressure and temp levels.
Anatomy Of A Compression Fitting
Key parts are the fitting body, a sleeve, and the compression nut. Tightening the nut forces the ring against the body. This compression locks the tube, preventing leaks.
Premium sets often include an O-ring of rubber or EPDM. Some kits also include a spare O-ring, simplifying upkeep. These extras are typical in deluxe fittings for specialized systems.
Material Choices And Finishes
Standard materials include copper, brass, and plated brass. Copper parts are best for matching copper tubing and reducing galvanic corrosion. Brass parts are common for water and AC lines.
Nickel-plated brass offers better corrosion resistance and a sleek finish. Specialty caps and covers can be powder-coated or anodized for looks and safety. Be sure to check chemical compatibility before choosing decorative finishes for glycol loops or fluid lines.
Standard Configurations And Terminology
Common forms are unions, couplers, tees, and straight adapters. You’ll find them labeled as 3/4 compression unions, couplers, or tees for branching lines.
In part selection, ensure the 3/4 compression nut matches. A 3/4 brass compression coupling is a robust choice when brass is preferred. Review the performance specs, such as PSI and temp limits, and if spares come with it.
Below is a quick comparison to guide selection.
| Configuration | Typical Material | Usage | Notes |
|---|---|---|---|
| Union | Copper/Brass | Connecting 2 tubes | Repair friendly |
| 3/4″ Coupler | Brass/Plated | Straight coupling of same-diameter tubes | Often sold with ferrules and nuts included |
| Brass Coupler | Brass | Potable water and HVAC | Resists corrosion in common plumbing environments |
| Compression tee | Brass/Plated | Branching lines | Check pressure rating for multi-branch systems |
| Straight adapter | Various | Transition between fittings and valves | Check threads/seat |
Use this breakdown to match a nut and ring to the right fitting. Proper matching stops leaking and makes install faster. Keep spare ferrules and an O-ring on hand for repairs.
Best Practices For Installing And Troubleshooting 3/4 Compression Fittings
Ensure the sizes correspond to the connector. Check the copper tubing is the correct class (Type M, L, K, or ACR) and is 3/4″ OD. Check for standard stamps if needed. Choose brass or copper fittings that suit the pipe material to avoid galvanic corrosion.
Cutting and cleaning the pipe are essential. Use a tubing cutter for a square cut. Deburr the inside edge and remove sharp outside burrs for proper ring fit. Put the nut and ring on the pipe before inserting it into the fitting.
Prepping pipes and picking fittings
Choose the fitting style for your connection. A union joins two tube ends, while a coupler links straight pipes. A 3/4 fitting may include special ferrules or O-rings for particular jobs. Opt for premium parts in high-pressure lines or refrigeration work.
Installation guide steps
Hand-tighten the nut until tube hits the stop inside the fitting. Use a wrench to tighten the nut as specified by the manufacturer. Some premium fittings have O-rings and need minimal torque; follow the manual.
If the fitting uses a ferrule, tighten until it compresses and grips the tubing. When an O-ring is present, check the seal before tightening and keep a spare O-ring on hand for repairs. For hidden pipes, test pressure at working pressure and look for drips.
Leak causes and solutions
Leaks often stem from a crooked cut, bad rings, poorly seated pipe, or bad torque. Tightening too much can deform ferrules and under-tightening causes looseness. Replace damaged ferrules or O-rings and re-cut the tube squarely if necessary.
Persistent leaks may indicate the fitting is bad or a permanent join such as solder is better. Stock extra nuts, rings, seals in your toolbox for fast fixes. A 3/4 compression union or a coupler can be easily changed if replacement is needed.
| Problem | Likely Cause | Remedy |
|---|---|---|
| Slow leak | Under-tightened 3/4 compression nut or mis-seated ferrule | Tighten to spec; reseat/replace |
| Immediate leak after installation | Bad seal/ring or shallow insertion | Check parts, re-cut, replace |
| Recurring leaks | Crushed ferrule or mismatch | Replace fitting with premium 3/4 copper compression fitting or use soldered joint for permanence |
| Union leak | Misaligned or bad torque | Align, check nuts, tighten, test |
| Pressure failure | Incorrect fitting type, e.g., wrong coupler or substandard material | Upgrade to a certified 3/4 compression coupler and test at system pressure before service |
Buying Guide: Selecting The Right 3/4 Compression Fittings From Installation Parts Supply.com
First check the material and specifications. Opt for brass, plated, or copper, ensuring they have clear corrosion resistance ratings. Check listings for pressure/temp specs. Remember to see if it comes with rings or spares. Know the tightening procedure, hand or tool tight.
Choose the fitting type for your job. A 3/4 union is perfect for joining two pipes same diameter. For straight connections, a 3/4 coupler is suitable. A brass coupling is great for transitions or when aesthetics are a concern. Always have spare compression nuts and ferrules for fixes.
Make sure it fits 3/4″ OD tubes. Sellers should list M, L, K, ACR pipes. For HVAC or refrigeration projects, verify usage with ACR copper and the refrigerants used.
Look at the finish and precision features of the parts. High-end parts may offer color or plated finishes that stop tarnish and look better. Good seats and machined ferrules reduce leaks and make installation easier.
Before ordering, check stock and lead times. Installation Parts Supply.com usually stocks a wide range of 3/4 compression fittings and related tubing available. Note the shipping deadlines if same-day processing is required.
Check the warranty and returns info. Seek good coverage and a straightforward return window, such as a 30-day policy for unused parts. Save receipts and order info accessible to expedite any claims for bad parts.
Use this guide to simplify selection:
- Material/Corrosion specs
- Pressure/Temp limits
- Included ferrules, O-rings, and installation notes
- Tube compatibility
- Fitting type: Union, Coupler, or Brass Coupling
- Stock, Ship time, Warranty
Conclusion
Selecting a top-tier 3/4 copper compression fitting ensures tight seals. These are vital for both home and commercial plumbing and HVAC systems. They fit common copper tube types—M, L, and K. Thus you can select the right fitting for the job, guaranteeing life under normal conditions.
To succeed, ensure you know the tubing type and size. Prep and clean the ends of the tubes. Choose the fitting material and configuration that suits your needs. Adhering to these steps and following the manufacturer’s guidelines reduces leak risk and the need for additional work.
For reliable parts, turn to Installation Parts Supply.com. They offer good inventory, certified copper, and good policies. By comparing product details, verifying stock, and selecting premium 3/4 compression fittings, you ensure secure, lasting connections every time.
