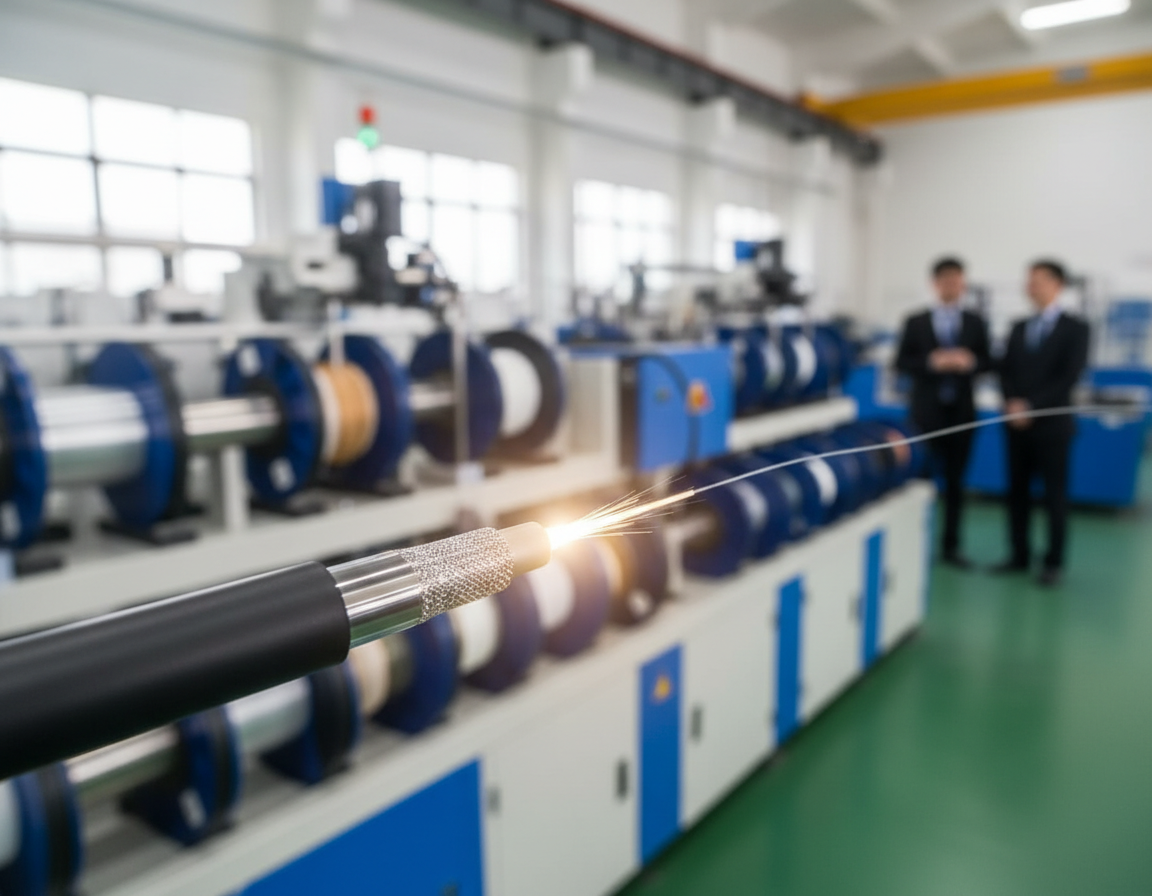

An FTTH Cable Production line is an integrated set of modules that turns optical fiber into finished drop and distribution products with reliable uniform quality.
Fiber Cable Sheathing Line
This introduction guides plant managers, process engineers, sourcing teams, and students in the U.S. who evaluate how industrial production equipment turns fragile fiber into durable cables for service and communication networks.
At its core, the full-chain objective is straightforward: safeguard the fiber, keep attenuation low, add strength for installation, and deliver a product that withstands both indoor and outdoor environments.
Expert equipment means stable tension control, synchronized drives, standardized process windows, and clear documentation for customer sign-off. This guide helps pair the right line configuration, materials, and test plan to the intended product instead of ordering equipment first and backfilling requirements afterward.
Readers will trace steps such as fiber preparation, buffering and coating, fiber organization and stranding, strength-member integration, sheathing (outer-jacket extrusion), optional armor, and final validation and packaging.
Key points: A well-specified line reduces defects and ensures predictable delivery. Choose process alignment before purchasing machines to avoid wasted time and expense.
How A Fiber Optic Cable Production Line Works Today
Where last-mile drop and distribution needs meet factory reality.
Modern production lines convert fine glass fiber into finished products used in United States broadband buildouts. Rising last-mile drop and FTTH drop demand pushes high volumes, so manufacturers emphasize repeatable handling and standards-based output.
Core Modules & Material Flow
Material follows a clear sequence: pay-off → guiding/tensioning → secondary coating/coloring → organization/SZ stranding → strength member feed → jacketing and sheathing → cooling / curing → take-up plus testing.
Modules And Outcomes
Stable fiber handling lowers attenuation and preserves data and communication integrity. Consistent jacketing helps installation and connector preparation. In-line monitors detect loss events before reels leave the line.
- Indoor vs. outdoor: different jacket compounds and buffering.
- Armored designs add steel tape or wire for added crush and rodent resistance.
- Drop designs typically use tight-buffered fibers and easier connector preparation.
Buyers should view lines as modular. Plants add armoring or skip steps to fit the product type. Throughput limits come from curing and dimensional control, not just motor speed.
Define Your Product And Data Standards Before You Buy Equipment
Kick off with a clear product definition that spells out cable type, core count, service environment, and end-use scenarios. That early definition narrows the modules your line must include, from tight-buffer units to SZ stranding and jacket extrusion equipment.
Select Standards & Measurable Targets
Pick fiber standards such as ITU-T G.652D class or bend-insensitive ITU-T G.657A1/A2 based on bend requirements and routing constraints. Define loss budgets, tensile targets, crush and bend limits, and environmental durability before choosing a supplier.
- Map the exact product type and core/fiber count to define required modules and control needs.
- Define attenuation (loss) budgets and mechanical strength targets to guide material selection.
- List required materials (buffer polymers, jacket compounds) and verify U.S. sourcing availability.
Data Standards, Traceability, And Validation
Convert targets into factory information: recorded process variables, lot traceability, and required customer test reports for acceptance. Plan R&D pilot runs to validate settings and reduce scale-up time.
Fiber Secondary Coating Line
| Target | Factory Impact | Typical Action |
|---|---|---|
| Low loss | Tension and alignment control | In-line attenuation checks |
| High strength | Strength member selection | Integrate aramid or metal |
| Improved bend resistance | Selecting the fiber type | Use G.657 variants |
Build Quality Into The Optical Fiber: Core, Cladding, And Coating Essentials
High-quality optical performance starts in the glass, where core purity and cladding design define the boundaries for loss.
Core + cladding create the central layer structure: an ultra-pure silica core carries the light while lower-index cladding keeps it confined. This geometry underpins low-loss transmission and stable optical behavior once cabled.
From Preform To Fiber Draw
Manufacturing begins with preform laydown and consolidation. Moisture removal via a high-temperature furnace cuts defects that increase attenuation.
The draw step pulls glass into a micron-scale strand. Geometry control here ties directly to stable attenuation and predictable transmission performance. A single blank can yield roughly 5 km of fiber, so process stability saves time and cost.
Primary Coating & Color Coding
Primary coating protects against scratches and handling damage; it is not the main tensile element. Color identification simplifies splicing, troubleshooting, and downstream fiber management.
- Preform consolidation: remove contaminants and moisture.
- Draw: control diameter and tension for low loss.
- Coating and color: protect and label each fiber.
| Layer Element | Role | Buyer check |
|---|---|---|
| Core | Carry light with minimal attenuation | Specify purity and loss specifications |
| Cladding | Confine light, control modal behavior | Confirm refractive index profile and geometry |
| Primary coating | Scratch protection and color ID | Verify adhesion and color coding |
FTTH Cable Production: Step-By-Step Line Setup From Buffering To Sheathing
A workable line setup moves each fiber from pay-off through buffering, stranding, and the outer jacket to a finished reel.
Secondary coating & fiber coloring stations apply dual-layer, UV-cured coatings (≈250 µm) and one-to-twelve channel color coding for traceability. Stable UV curing and web tension reduce mix-ups and rework.
Buffering And Materials
Tight buffering (600–900 µm) protects handling and simplifies connector work. Selecting Hytrel, PVC, or LSZH affects flexibility, temperature range, and flame/smoke performance.
SZ Stranding & Organization
SZ stranding uses alternating lay to balance geometry and improve cable flexibility. Servo control for up to 24 fibers keeps lay pitch consistent and reduces attenuation risk.
Strength Members, Jacketing
Aramid yarn is the standard tensile element; it provides pull strength without stressing the fibers during installation.
Outer jacket extrusion using PVC, PE, or LSZH follows. Speeds typically range 60–90 m/min and require tight OD and concentricity control.
Armoring, Control Points
Where crush or rodent resistance is needed, add steel tape or wire armor with adjustable tension control. Operators track tension, cure state, concentricity, OD, and cooling to maintain quality.
| Process Step | Key Control | Typical Spec |
|---|---|---|
| Secondary coating | UV cure plus tension | ≈250 µm, consistent cure |
| Tight buffer stage | Choice of material | 600–900 µm (Hytrel/PVC/LSZH) |
| Sheathing | Concentricity and OD | 60–90 m/min |
Optimize Production Speed & Process Control With Modern Automation
As factories chase 24/7 output, synchronized controls and tension systems form the backbone of reliable manufacturing.
PLC, HMI And Closed-Loop Tension For Steady Operation
Modern lines use Siemens PLC/HMI platforms to synchronize modules, manage recipes, and log process data. Closed-loop tension control protects the fiber during starts, stops, and speed changes.
Fiber Coloring Machine
Match Speed To Curing And Dimensional Control
Line speed often tops out when curing, cooling, or extrusion dimensional control can’t keep pace. UV cure completeness, water trough stability, and chill capacity set the true ceiling.
Layout, Changeover, And Procurement
Plant layout impacts uptime: correct pay-off/take-up placement and protected fiber paths reduce damage and speed changeovers.
- Use quick-change tooling and documented setup steps to speed changeovers.
- Specify industrial power (380 V AC ±10%) and a typical ≤55 kW load when ordering equipment.
- Demand remote diagnostics, spare parts availability, and fast service response from the equipment company.
| Focus | Operational Value | Typical Target |
|---|---|---|
| Synchronization | Lower scrap, repeatable runs | Siemens PLC/HMI |
| Tension control | Protects fiber and stabilizes loss | Closed-loop, high accuracy |
| Layout & changeover | Shorter downtime | Quick-change tooling, staging |
Testing And Quality Control To Reduce Loss And Improve Delivery Reliability
Strong testing and clear QC turn raw fiber into reliable, field-ready cable reels.
Start with optical validation. Inline attenuation testing and return loss checks confirm signal performance before reels exit the line.
Optical Checks And Signal Integrity
Attenuation testing is the primary guardrail against performance complaints. Higher loss readings point to handling damage, microbends, or contamination.
Return loss checks focus on reflections that impact sensitive links and tight network margins.
Mechanical And Environmental Validation
- Tensile pull tests verify strength members and installation safety.
- Crush and bend tests simulate real-world stresses during installation.
- Temperature cycling, moisture soak, and vibration tests reduce risk for outdoor and aerial routes.
| Test | Objective | Typical Outcome |
|---|---|---|
| Attenuation | Measure loss per km | Pass/fail vs. spec |
| Mechanical | Confirm pull/crush/bend performance | Installation rating |
| Environmental tests | Recreate field conditions | Durability verification |
Traceability connects raw material lots, inline data, and final test results to reel IDs. Proper reeling, labeling, and protective packaging preserve quality and speed customer acceptance and delivery.
Conclusion
A clear manufacturing plan ties product targets to the exact line modules and control limits needed for reliable output. Define the intended FTTH product, service environment, and measurable specs before selecting equipment or layout.
Fiber optic fundamentals—core, cladding, and coating—set the optical baseline. Careful upstream handling preserves data integrity and keeps final quality within acceptance limits.
Configure buffering, organization/stranding, strength members, and jacket choices to match installation realities. Use automation and closed-loop controls to maintain speed, reduce scrap, and keep delivery predictable in U.S. markets.
Operational discipline matters: implement comprehensive testing, reel-level traceability, and documented quality systems so customers can accept reels quickly. Next step: convert these points into a purchasing checklist (spec targets, utilities, layout, and acceptance tests) before you request quotes or trials.
